Product Features

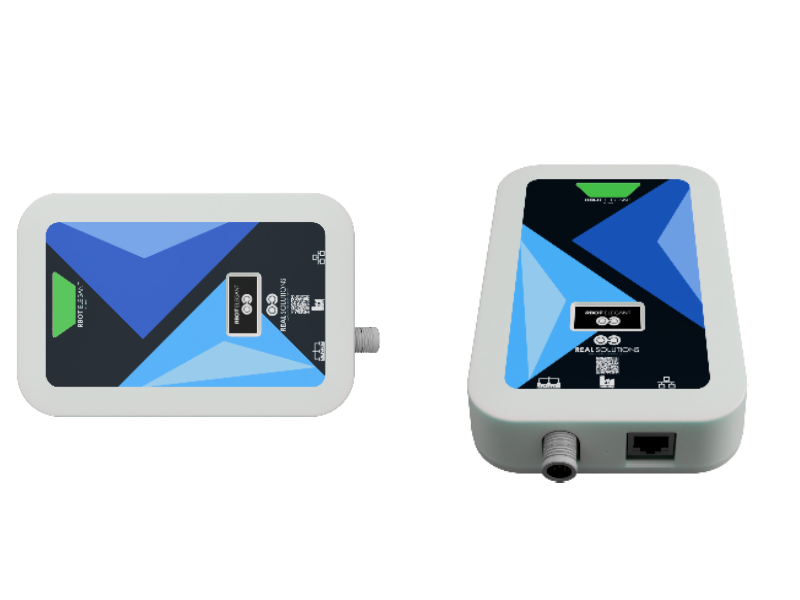

The Elegant Device is a compact, smart, and reliable hardware solution engineered for seamless integration into industrial systems. Powered by the Nuvoton M263ZIAAE microcontroller, it combines performance and efficiency in a sleek form factor.

Designed with operator convenience and system communication in mind, the device features RS485 communication, a 0.96" OLED display, and a 125kHz industrial RFID card reader for personal identification. It also includes tactile feedback via RGB lighting and a buzzer indicator, enhancing interaction and user awareness.

Thanks to its plug-and-play Würth WR-CIRCM12 connector and dedicated user button, the Elegant device can be quickly deployed in field applications where space, security, and communication are critical.

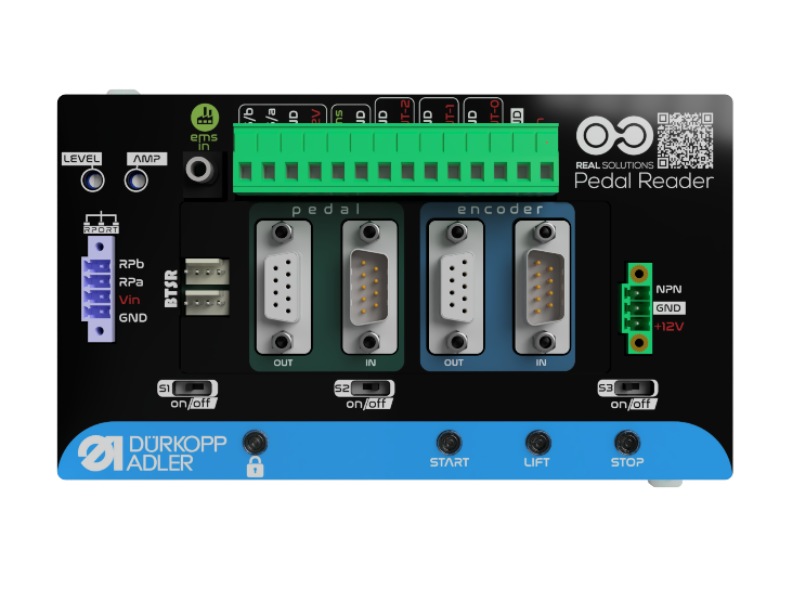

The system is complemented by the Communication Interface Card, a powerful and multifunctional expansion board. At its core, it also features the Nuvoton M263ZIAAE MCU running at 192MHz, offering high-speed processing for real-time industrial control tasks.

This board supports a variety of inputs and outputs including DB9 pedal and encoder inputs, BTSR analog/digital tension sensor support, and energy monitoring with adjustable amplification levels. The flexible I/O options such as 3x PNP outputs and NPN inputs (4–24V) make it suitable for a wide range of automation and motion-control applications.

With built-in configuration switches (S1, S2, S3) for line termination, pull-up, and input selection, the Communication Interface Card is a highly adaptable and field-ready interface module.
